One bit computer: ALU design

(Homebrew CPU)

The one bit computer’s ALU will have to perform a quite a few different operations:

It turns out most of these operations can be implemented using a very simple circuit: A 4 to 1 multiplexer (One can be constructed with just 8 transistors).

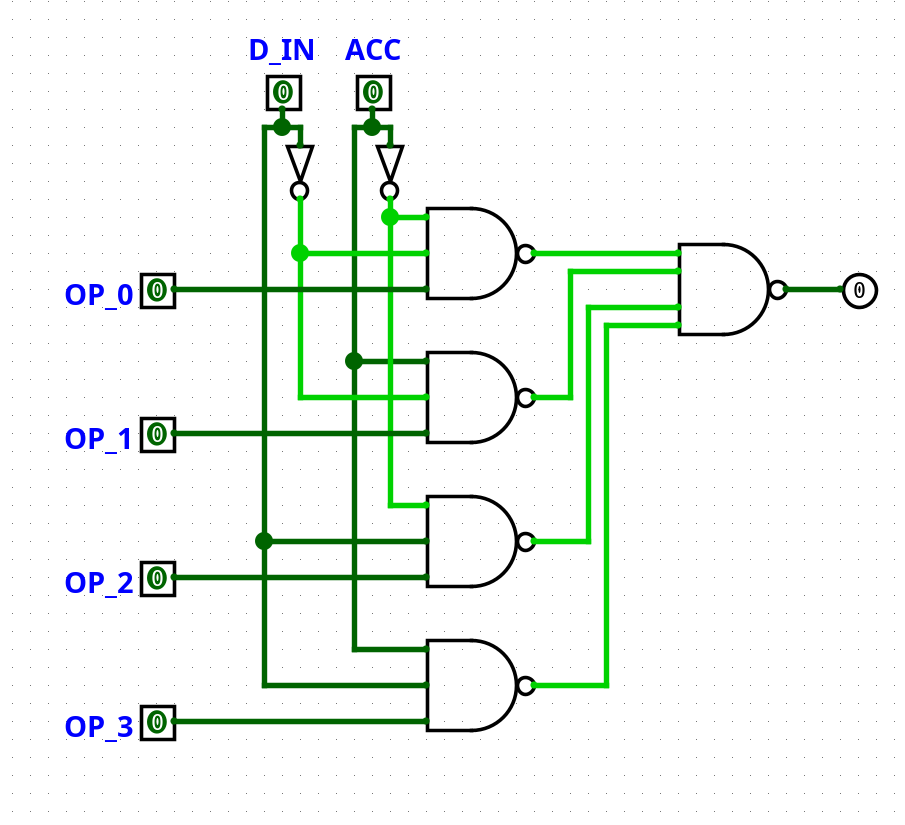

A schematic for a 4-1 multiplexer implemented using NAND gates

If the inputs for the operation (The data bus and accumulator) are feed into the select inputs, then the data inputs control the effective truth table of the multiplexer. This allows any 2 input gate to be simulated, including some weird ones like “(NOT Acc) OR Data”, or “Always one”1:

00 01 10 11 Operation 2
0 0 0 0 Always zero
0 0 0 1 AND
0 0 1 0 Data AND (NOT Acc)
0 0 1 1 Load
0 1 0 0 (NOT Data) AND Acc
0 1 0 1 No OPeration
0 1 1 0 XOR
0 1 1 1 OR
1 0 0 0 NOR
1 0 0 1 XNOR
1 0 1 0 NOT
1 0 1 1 Data OR (NOT Acc)
1 1 0 0 Load complement
1 1 0 1 (NOT Data) OR Acc
1 1 1 0 NAND
1 1 1 1 Always one

The easiest way to implement a sane instruction set using a multiplexer as an ALU is to with a small diode ROM to translate an opcode into a truth table3:

Opcode Name ALU operation
0000 0 NOP 0101 (NOP)
0001 1 LD 0011 (LD)
0010 2 LDC 1100 (LDC)
0011 3 STO 0101 (NOP)
0100 4 STOC 0101 (NOP)
0101 5 OEN 0101 (NOP)
0110 6 ADD* 0000 (Always zero)
0111 7 XNOR 1001 (XNOR)
1000 8 XOR 0110 (XOR)
1001 9 AND 0001 (AND)
1010 A OR 0111 (OR)
1011 B ONE* 1111 (Always one)
1100 C TWO* 0000 (Always zero)
1101 D JMP 0101 (NOP)
1110 E SKZ 0101 (NOP)
1111 F RET 0101 (NOP)

Instructions marked with a “*” require additional ALU circuitry.

This is effectively microcode4 for the ALU, but just with 8 bytes total, and most of it is just 0101 (NOP). There are only 8 distinct values, which would be stored with just 15 diodes (and a few, possibly diode, OR gates).

The ALU also needs to do arithmetic, while that could be accomplished with a sequence of logic operations5, it will be much faster and more convenient to have it built in. Doing this only requires adding a full adder, along with some circuitry to set/reset/preserve the carry flag.

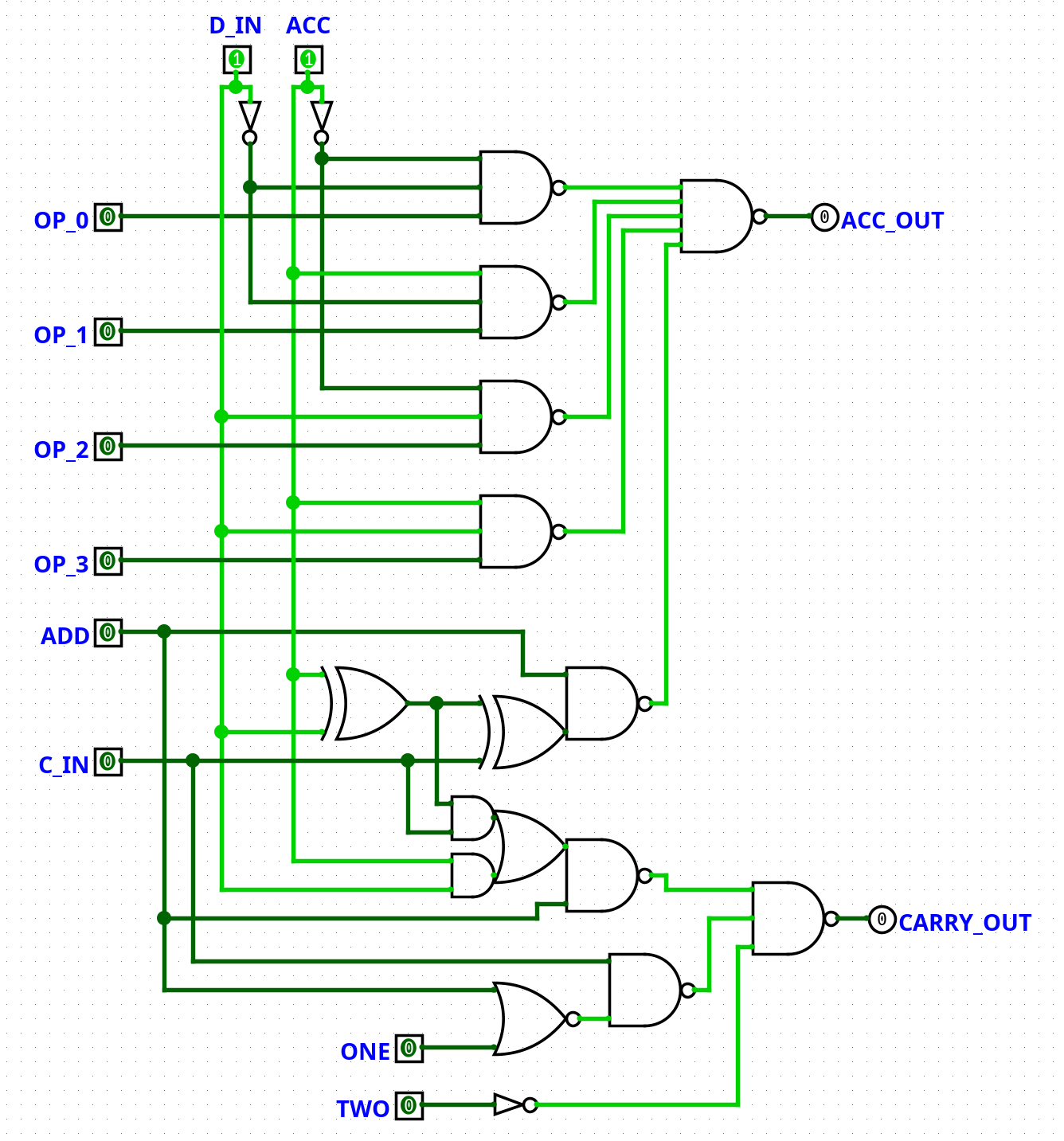

Logisim Evolution circuit file: alu.circ

The NANDs right before the output can all be constructed using a wired-and and a NOT gate, only costing a single transistor each. The collection of gates consisting of 2 ANDs, an OR and an NAND that compute carry can actually be implemented as a single 5 transistor gate.

While the 2 XOR gates look scary, considering how many gates it takes to build them out of NANDs/NORs, they can actually be fairly easily constructed from transistors:

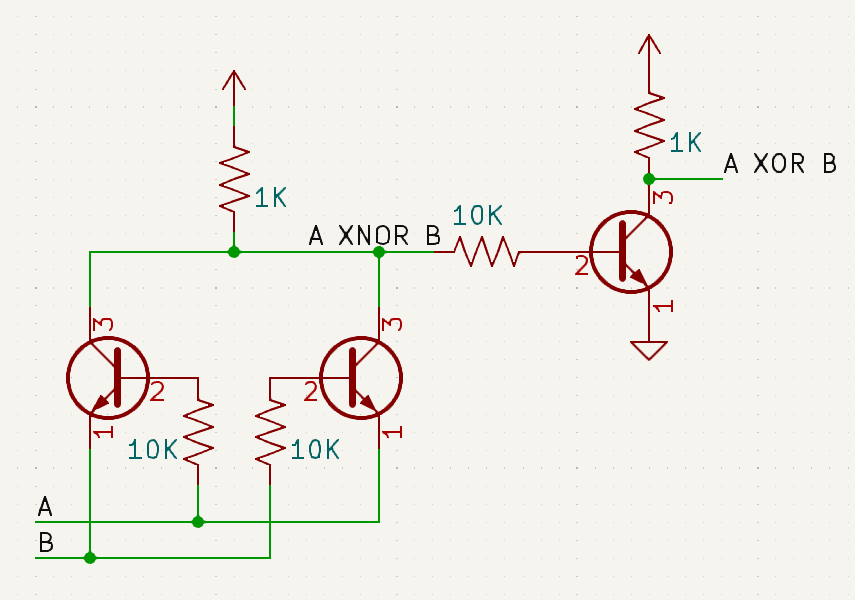

A fairly clever XOR/XNOR gate implementation using 2 or 3 NPN BJTs

  1. This actually allows an even simpler computer, where on every opcode is interpreted as a truth table for the operation to be performed, and the result is written back to memory on every cycle. It would be Turing complete with indirect addressing/jumps or self modifying code. However, I want built in support for addition and conditional execution, so this is not enough. ↩︎

  2. Assumes that the first bit is the data bus and the second is the data bus ↩︎

  3. It is possible to arrange the instructions so that the arithmetic operation’s opcode is equal to the desired truth table, so that all the control logic has to do is forward the opcode to the ALU. NOP has to stay at opcode 0000 for instruction skipping to work, but all other operations can be moved around:

    Opcode Name Function
    0000 0 NOP Does nothing
    0001 1 AND* ANDs the accumulator with the bus
    0010 2 OEN Loads the OEN register from the bus
    0011 3 LD* Load the bus into the accumulator
    0100 4 ONE Forces a one into the accumulator and a zero into the carry
    0101 5 TWO Forces a zero into the accumulator and a one into the carry
    0110 6 XOR* XORs the accumulator with the bus
    0111 7 OR* ORs the accumulator with the bus
    1000 8 ADD Adds the accumulator to the bus, using the carry register to store the carry
    1001 9 XNOR* XNORs the accumulator with the bus
    1010 A STO Writes the accumulator on the the bus
    1011 B STOC Writes the complement of the accumulator on the bus
    1100 C LDC* Load the complement of the bus into the accumulator
    1101 D JMP Strobes the jump flag
    1110 E SKZ Skips the next instruction of the accumulator is zero
    1111 F RET Skips the next instruction and sets the return flag

    Instructions marked with “*” can share control logic. However, this ruins to organization, and does’t really reduce the amount of logic required compared to a small ROM. ↩︎

  4. Unlike regular microcode, this only has a single step, which avoids any complex seqencer circuits ↩︎

  5. This is what manualy implemented arithmatic looks like:

    ; Compute and store the sum, storing a XOR b in tmp for later use
LD a
XOR b
STO tmp
XOR carry
STO sum
; AND tmp with the carry flag. If the result is one, we should carry
LD tmp
AND carry
STO tmp
; A carry can also be generated if both a and b are one
LD a
AND b
; Compute and store the final carry value
OR tmp
STO carry

    12 instructions for adding 1 bit! ↩︎
